Garage Lifting Push Travel Trolley , 10 Ton Geared Beam Trolley

Changshu Seagull Crane&Hoist Machinery Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

Garage Lifting Push Travel Trolley , 10 Ton Geared Beam Trolley

Brand Name : SEAGULL

Model Number : TG

Certification : GS/CE

Place of Origin : CHINA

MOQ : 100pcs

Price : Negotiation

Payment Terms : LC, TT

Supply Ability : 12,000pcs per month

Delivery Time : 30 working days after received your down payment

Packaging Details : Packed in carton firstly,and then reinforced with steel case for outer packing

Application : Warehouse, Building, Wharf, Ect.

Capacity : 10 TON

Surface : Painting, Chorme

Standard : GS/CE

Type : Manual

chainpull to lift full load : 320N

Contact Now

TG Lifting Push Travel Trolley Geared Beam Trolley Capacity: 10 Tons


PRODUCT SUMMARY
This SEAGULL Manual Geared Trolley is ideal for use in garages, workshops, warehouses and other areas where machines are installed or where cargo is lifted, especially places without power equipment to do the work. Mount on wide-flange H-beams, standard I-beams, or curved tracks.


DESCRIPTION

* Capacity form 0.5T-30T.

* Wheels lubricated and equipped with bearings for long life.

* More thickness of the steel plates and strong shaft to ensure the good safety.

* The static test is 4times of capacity, and running test is 1.5times of capacity one by one.

* One year guarantee.


DESCRIPTION

ModelRated Load
(T)
Test Load
(T)
Chain Pull to
Lift Full Load(N)
Dimensions(mm)I-Beam
recommended
Net Weight
(kg)
ABCH
0.50.50.756024819619010868-1269
111.58028023621111580-14613
22314031827323613080-16818
334.515034032029516488-16825
557.5170365366334177100-17039
101015320410389460237122-20370
202030340475798575300122-203186
303037.5352392625551260150-250245

Product Tags:

chain fall trolley



chain block trolley


Wholesale Garage Lifting Push Travel Trolley , 10 Ton Geared Beam Trolley from china suppliers

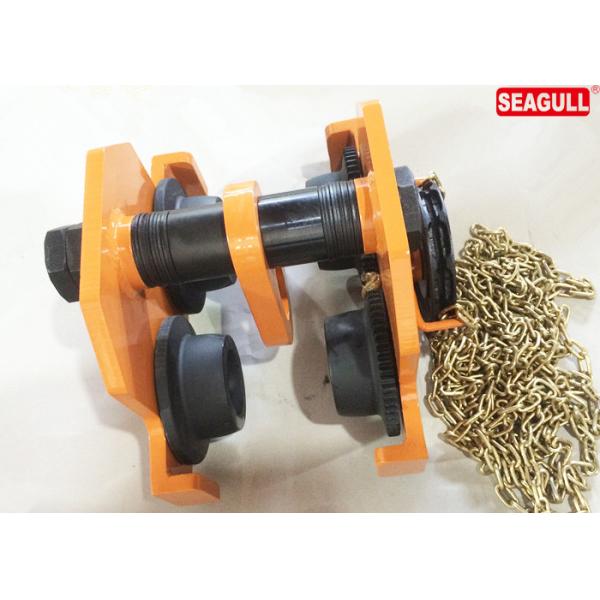

Garage Lifting Push Travel Trolley , 10 Ton Geared Beam Trolley Images
