SG Type Mini Electric Single Phase Chain Hoist 200kg / Construction Hoist

Changshu Seagull Crane&Hoist Machinery Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

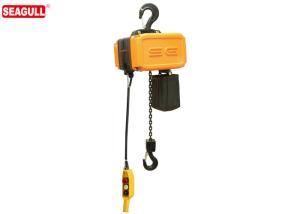

SG Type Mini Electric Single Phase Chain Hoist 200kg / Construction Hoist

  • 1
  • 2
  • 3

Brand Name : SEAGULL

Model Number : SG

Certification : CE

Place of Origin : China,Jiangsu

MOQ : 50pcs

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 10000 sets per year

Delivery Time : 30 days

Packaging Details : carton and pallet

Condition : New

Usage : Construction Hoist

Power Source : Electric

Maximum Lifting Weight : 200KG

Warranty : One Year

color : optional

material : aluminium

INS CLASS : F

chain : FEC load chain

lifting height : 3 M

Contact Now

SG type CE single phase mini electric chain hoist 200kg wholesale price


1. With suspension hook. push, geared or electric trolley.
2. Standard lift height 3 m, control cable 3m
3. Operating voltage 220-460V, 50/60Hz, 1-3 phase
4.Low voltage control 24V is standard.
5. High efficient energy-saving motor, asbestos free brake system.
6. Top and bottom hooks are fitted with safety latches as standard.
7. Drop forged steel suspension & load hooks are heat treated and fracture resistant. In case of Hangerous overloading or abuse, the hook does not fracture but will slowly yield.
8. Solid chain bucket.
9. Super strong surface hardened chain.
10. Limit switch devices fitted at both top & bottom ends, switch off power automatically to prevent load chain from running out.
11 The unique friction clutch overload protection, which protects the unit from overloading.

Features:
A.Aluminium Body
B.Quality chain is supplied by FEC Japan
C.Most tensile safety hooks without break
D.Compact and high efficient motor with heat protection device
E.Choose double speed motor,big power and different voltage are available
F.Push button is with 24V low voltage to guarantee safety and limit switch system
G.Sensitive break system.Friction disk without asbestos
H.Choose presice process of high tensile helix gear working system to keep lower noise
I.Enough Chain bucket set.space to suit different lifting longth
J.IP54 protection on electric hoist for dust and water protection
K.Ins Class:F

SG Type Mini Electric Single Phase Chain Hoist 200kg / Construction HoistSG Type Mini Electric Single Phase Chain Hoist 200kg / Construction Hoist

SG ELECTRIC HOIST
Work class M3 M4 M5 M6 M7
150 180 240 300 360

Lifting speed
(m/min)

Lifting height
(m)

Power km
(M3)

Weight
(kg)

%ED 25% 30% 40% 50% 60%
Model Capacity
SGXXX/1N 500 400 320 250 200 8 3 0.8 25
SGXXX/1NF 500 400 320 250 200 8/2 3 0.8/0.2 25
SGXXX/1S 320 250 200 160 125 12.5 3 0.8 25
SGXXX/1SF 320 250 200 160 125 12.5/3 3 0.8/0.2 25
SGXXX/1H 200 160 125 100 80 20 3 0.8 25
SGXXX/1HF 200 160 125 100 80 20/5 3 0.8/0.2 25
SGXXX/2N 1000 800 630 500 400 4 3 0.8 27
SGXXX/2NF 1000 800 630 500 400 4/1 3 0.8/0.2 27
SGXXX/2S 630 500 400 320 250 6.3 3 0.8 27
SGXXX/2SF 630 500 400 320 250 6.3/1.5 3 0.8/0.2 27
SGXXX/2H 400 320 250 200 160 10 3 0.8 27
SGXXX/2HF 400 320 250 200 160 10/2.5 3 0.8/0.2 27



SG Type Mini Electric Single Phase Chain Hoist 200kg / Construction Hoist

SG Type Mini Electric Single Phase Chain Hoist 200kg / Construction HoistSG Type Mini Electric Single Phase Chain Hoist 200kg / Construction Hoist
