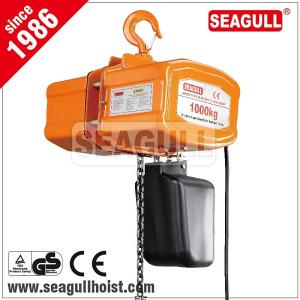

1 ton / 1 tonne / 1t electric chain hoist , electric mni crane 12 v

Brand Name : SEAGULL

Model Number : HHXG2

Certification : CE

Place of Origin : China,Jiangsu

MOQ : 100 Sets

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 10000 sets per year

Delivery Time : 30 days

Packaging Details : carton and pallet

Condition : New

Usage : Construction Hoist

Power Source : Electric

Sling Type : Chain

Maximum Lifting Weight : 5t

Maximum Lifting Height : 12m

Warranty : One Year

Color : Optional

Contact Now

HHXG Electric Chain Hoist

Capacity:0.5-5ton
Lifting speed:1m/min-6.3m/min
Voltage:110-440V
Frequence:50/60Hz


Feafures:
A. Capacity from 500kg to5000kg
B. Quality chain is supplied by FEC JAPAN.
C. Most tensile safety hooks without break.
D. Compact and high efficient motor with heat protection device.
E. Push button is with 24v low voltage to guarantee safety.
F. Limit switch.
G. Limit load device are fitted.
H. CE certified.
I. IP54 protection on electric hoist for dust and water proof protection.

Technical Parameters & Specifications:

HHXG2 SUSPENDED TYPE SINGLE PHASE

ELECTRIC CHAIN HOIST

ModelHHXG205HHXG210HHXG220HHXG230HHXG250
Rated Load(Ton)0.51235
Lift(m)33333
Lifting Speed(m/min)5.25.22.61.71
Hoist MotorOutput(kw)0.81.21.21.21.2
1-phaseIns ClassFFFFF
%ED4040404040
LoadDia(mm)7.17.17.17.17.1
ChainNumber of falls11235
Dynamical Test(KN)5.511223355
Min. Headroom545580740790950
MaxG(mm)
Net Weight64657280135
(kg)

HHXG3 SUSPENDED TYPE THREE PHASE

ELECTRIC CHAIN HOIST

ModelHHXG305HHXG310HHXG320HHXG330HHXG350
Rated Load(Ton)0.51235
Lift(m)33333
Lifting Speed(m/min)6.36.33.22.11.3
Hoist MotorOutput(kw)0.81.61.61.61.6
3-phaseIns ClassFFFFF
%ED4040404040
LoadDia(mm)7.17.17.17.17.1
ChainNumber of falls11235
Dynamical Test(KN)5.511223355
Min. Headroom545580740790950
MaxG(mm)
Net Weight64657280135
(kg)

HHXG3 DOUBLE SPEED SUSPENDED TYPE THREE PHASE

ELECTRIC CHAIN HOIST

ModelHHXG305BHHXG310BHHXG320BHHXG330BHHXG350B
Rated Load(Ton)0.51235
Lift(m)33333
Lifting Speed(m/min)5.2/1.75.2/1.72.6/0.851.7/0.581.0/0.35
Hoist MotorOutput(kw)0.8/0.251.2/0.41.2/0.41.2/0.41.2/0.4
1-phaseIns ClassFFFFF
%ED4040404040
LoadDia(mm)7.17.17.17.17.1
ChainNumber of falls11235
Dynamical Test(KN)5.511223355
Min. Headroom545580740790950
MaxG(mm)
Net Weight64657280135
(kg)
